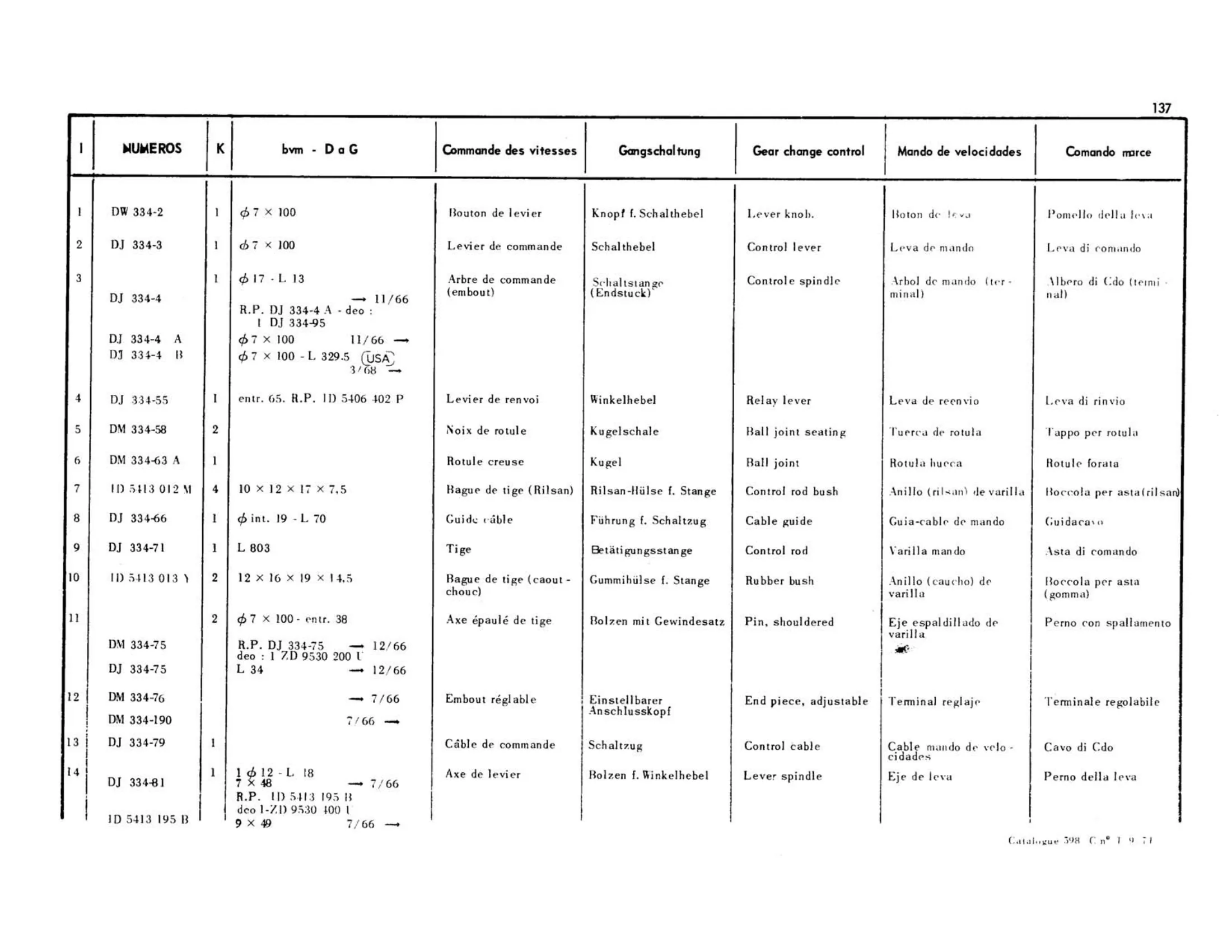

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Gear change control | Lever knob. | Control lever | Controle spindle | Relay lever | Ball joint seating | Ball joint | Control rod bush | Cable guide | Control rod | Rubber bush | Pin, shouldered | End piece, adjustable | Control cable | Lever spindle
