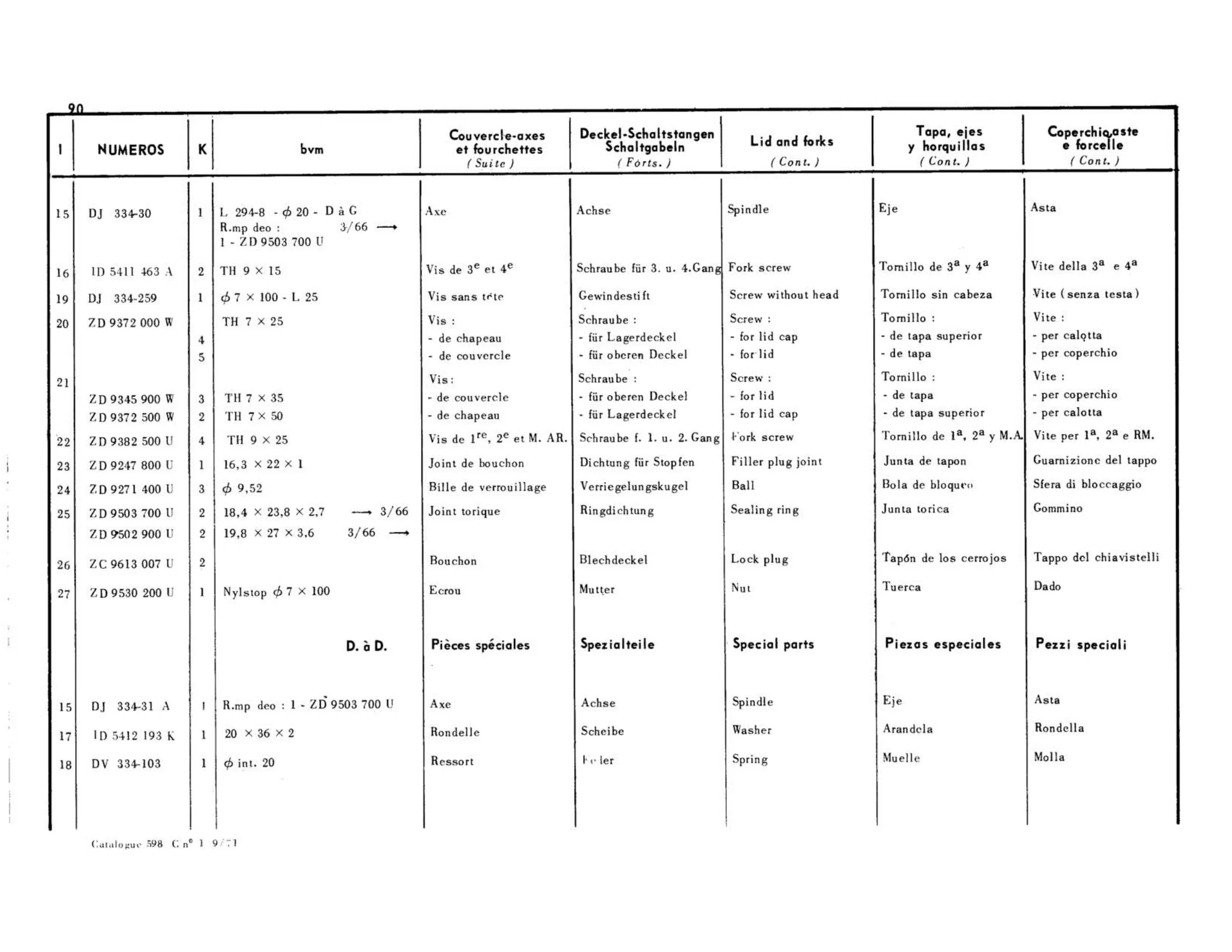

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Lid and forks | ( Cont.) | Spindle | Fork screw | Screw without head | Screw : | for lid - cap | + | Screw : | for lid ~ | for lid cap | Fork screw | Filler plug joint | Ball | Sealing ring | Lock plug | Nut | Special parts | Spindle | Washer | Spring
