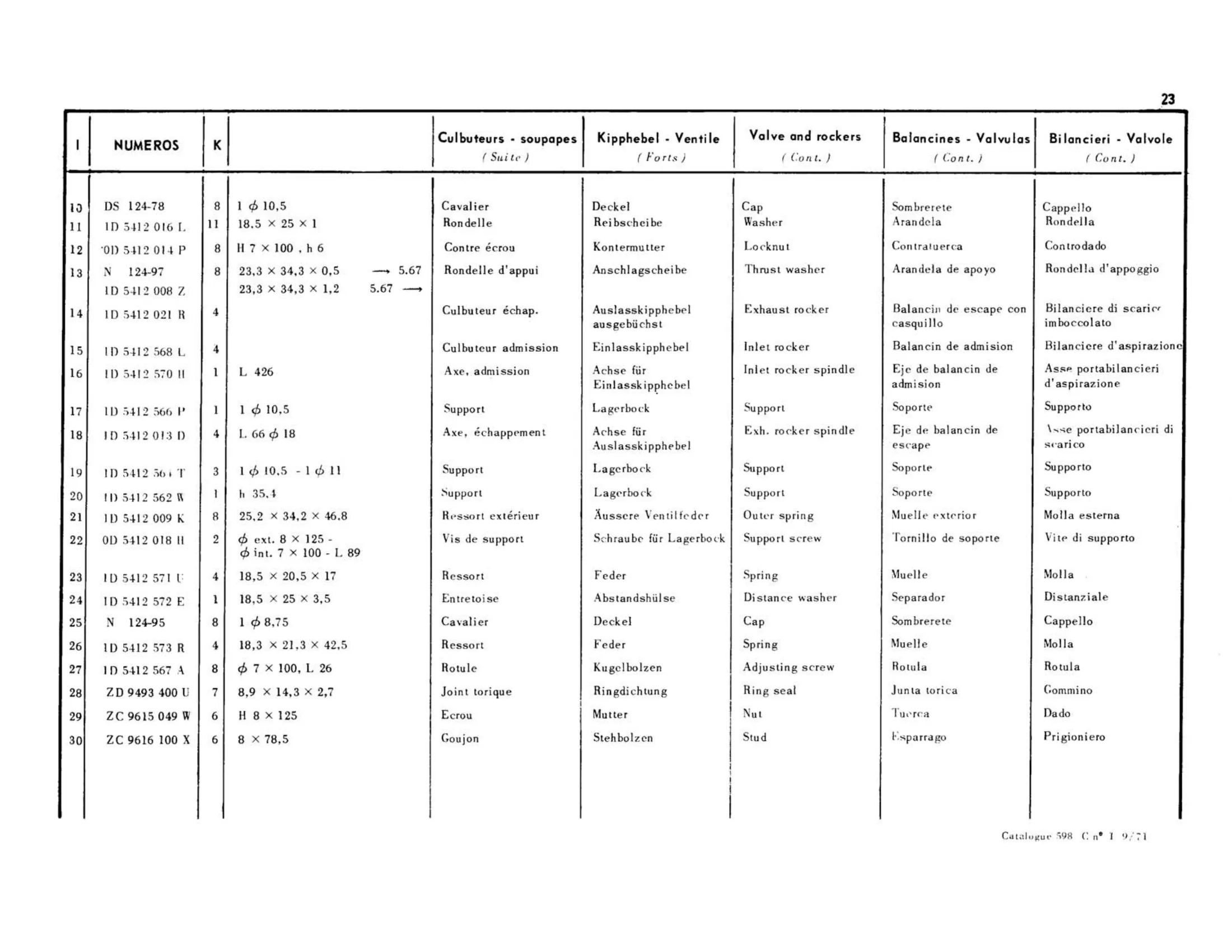

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Valve and rockers | (Cont) | Cap Washer | Locknut | Thrust washer | Exhaust rocker | Inlet rocker | Inlet rocker spindle | Support | Exh. rocker spindle | Support | Support | Outer spring | Support screw | Spring | Distance washer | Cap | Spring | Adjusting screw | Ring seal | Nut | Stud
