PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

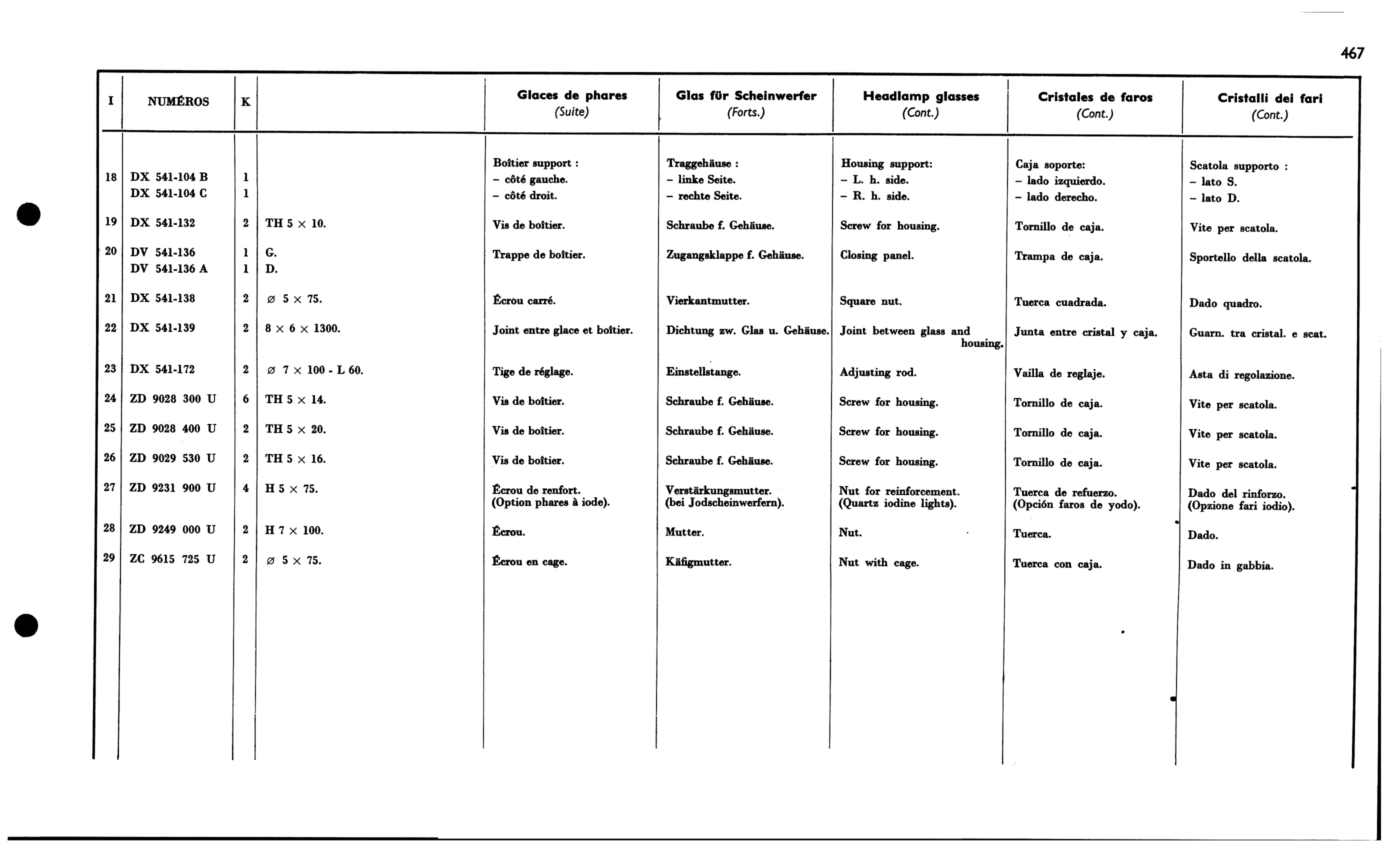

Headlamp | (Cont.) | Housing support: | L. h. side. - | R. h. side. - | Screw for housing. | Closing panel. | Square nut. | Gehause. Joint between glass u. | Adjusting rod. | Screw for housing. | Screw for housing. | Screw for housing. | Nut for reinforcement. (Quartz iodine lights). | Nut. | Nut with cage.
