PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

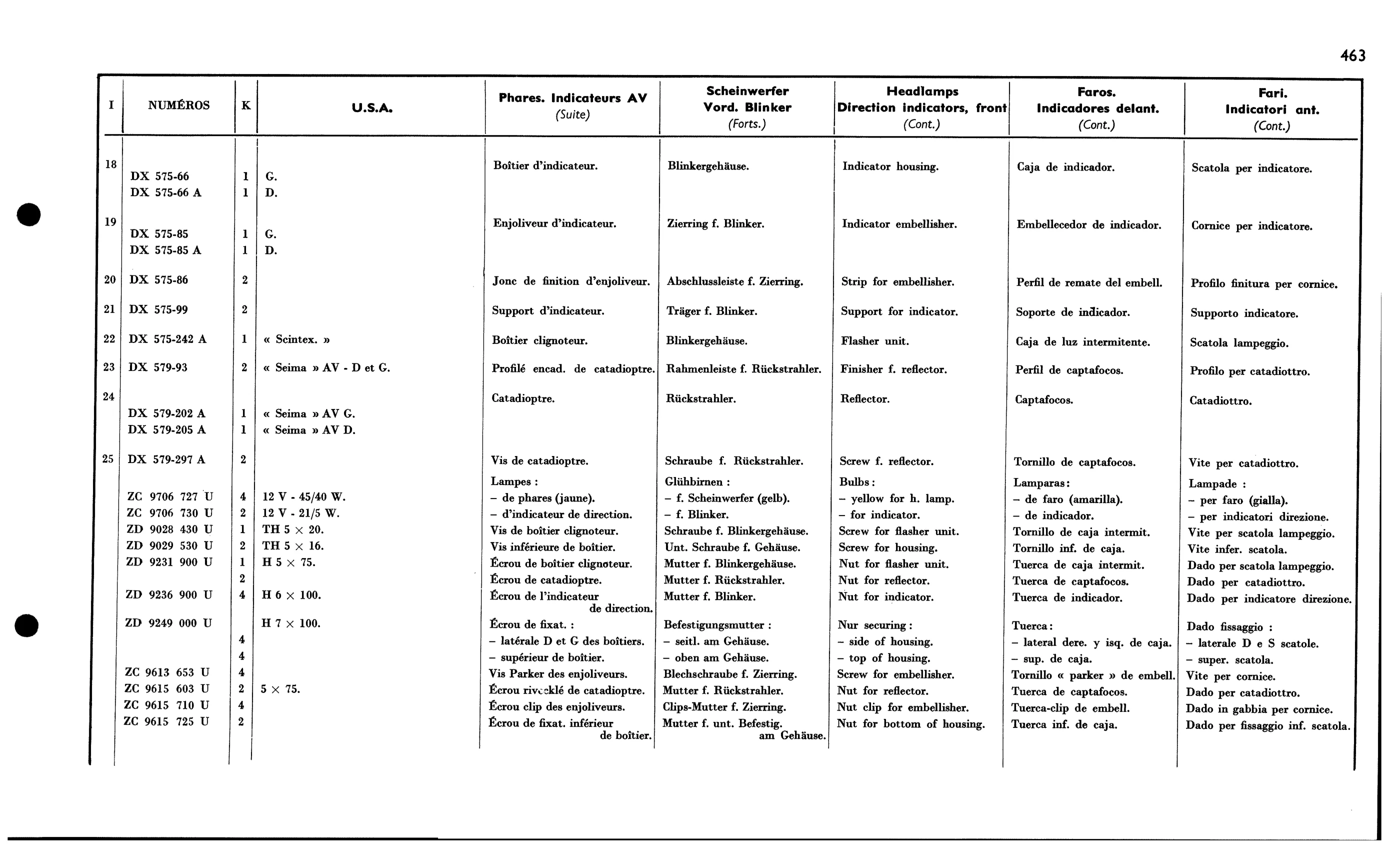

Headlamps | Direction indicators, | (Cont.) i | Indicator housing. | Indicator embellisher. | Strip for embellisher. | Support for indicator. | Flasher unit. | Finisher f. reflector. | Reflector. | Screw f. reflector. | Bulbs: | yellow for h. — | for indicator. — | Screw for flasher | Screw for housing. | Nut for flasher | Nut for reflector. | Nut for indicator. | : Nur securing : | side of housing. ~
